Lumen One Platform: D2L/Brightspace LTI 1.3 Integration

To enable faculty to use Lumen One Platform courses from within your LMS, you will need to set up a global learning tool interoperability (LTI) connection.

There are 4 steps in this short guide to getting Lumen One Platform LTI integration setup:

1. Add Lumen One Platform as an LTI 1.3 tool provider
2. Create Deployments for the applicable Org Units
3. Provide Lumen Support with Registration Details and Deployment ID via Helpdesk ticket
4. Test the integration by adding links to a course

Add Lumen One Platform as an LTI 1.3 tool provider

You can add new LTI 1.3 tool providers from Brightspace Admin Tools area:

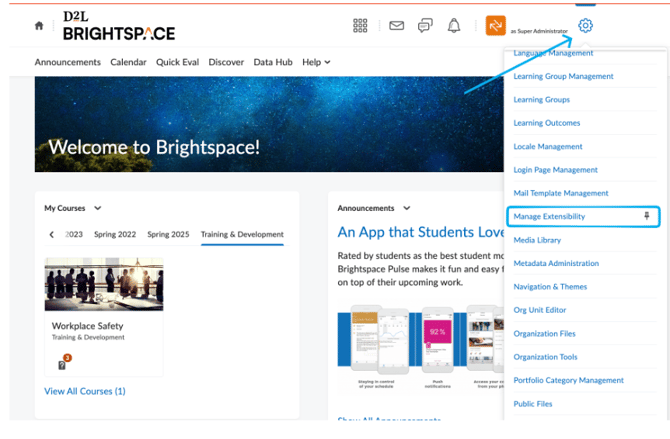

1. In Brightspace on the Admin Tools Panel, select Manage Extensibility. If you don't see the Manage Extensibility link, then your user doesn't have the correct permissions to add LTI tools
2. Click on the LTI Advantage tab.
3. Click on the Register Tool button.

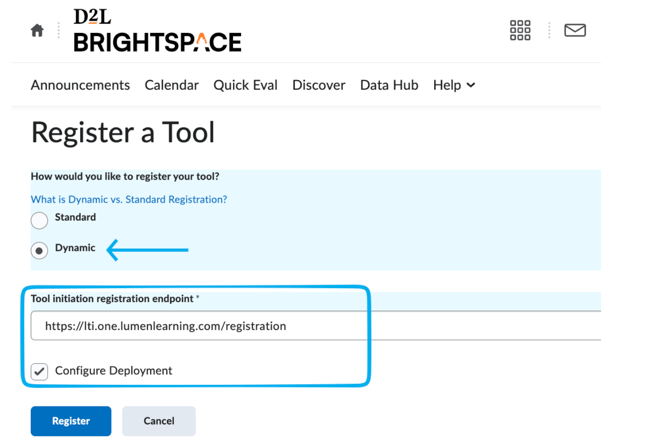

4. Click the Dynamic Registration radio button.
5. Enter the Lumen One Platform Dynamic Registration URL:  https://lti.one.lumenlearning.com/registration
6. Check configure Deployment if you are ready to proceed to that step now, if not you can return to this step later.
7. Click Register:

Select the All filter to view the new tool in your LTI Advantage tool list with the following tool name:  Lumen One Platform LTI 1.3

1. Check the associated checkbox and click Enable to enable the tool
2. Click the tool name to view the registration properties and access the registration details to share with Lumen

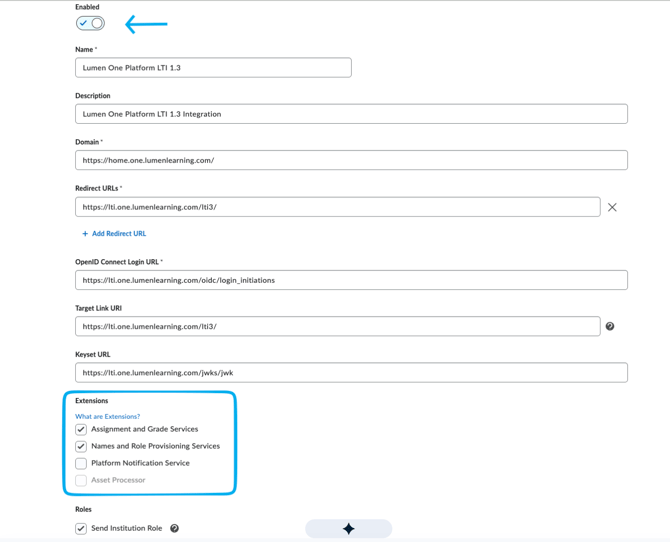

3. Confirm Configuration values will be set to:

Name: Lumen One Platform LTI 1.3

Description: Lumen One Platform LTI 1.3 integration

Domain: https://home.one.lumenlearning.com

Redirect URLs: https://lti.one.lumenlearning.com/lti3/

OpenID Connect Login URL: https://lti.one.lumenlearning.com/oidc/login_initiations

Target Link URI: https://lti.one.lumenlearning.com/lti3/

Keyset URL: https://lti.one.lumenlearning.com/jwks/jw

Extensions:

Assignment and Grade Services

Deep Linking

Names and Roles Provisioning Service

Roles:
Do not tick

1. Your Brightspace Registration Details will be displayed at the bottom of the form.
2. Copy the information to share with Lumen Support.

Create Deployments for the applicable Org Units

1. Click on the View Deployments Link from the Tool Registration details page
2. Click the New Deployment button if Deployment is not already created. If previously created click the tool in the table to open and update the deployment details.
3. Verify the Enabled Toggle is set to Enabled
4. Select the Lumen One Platform LTI 1.3 tool from the dropdown
5. Enter Lumen One Platform LTI 1.3  for the Name and Description
6. Confirm the following extensions are selected:
   1. Assignment and Grade Services
   2. Deep Linking
   3. Names and Roles Provisioning

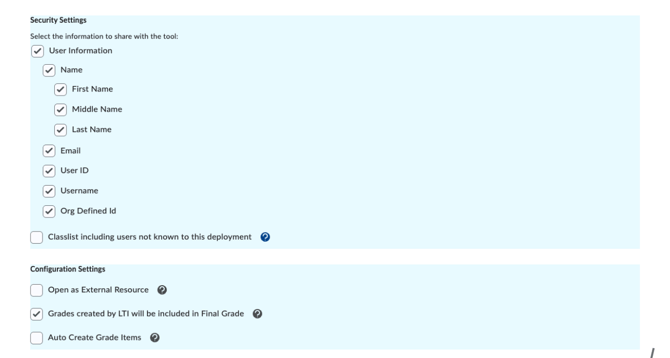

7. Select the following Security Settings
   1. Org Unit
   2. User Information
      1. Name
         1. First Name
         2. Middle Name
         3. Last Name
      2. Email
      3. User Id
      4. Username
      5. Org Defined Id
   3. Link Information
      1. Title
      2. Description
8. Select the following for Configuration Settings
   1. Grades created by LTI will be included in Final Grade

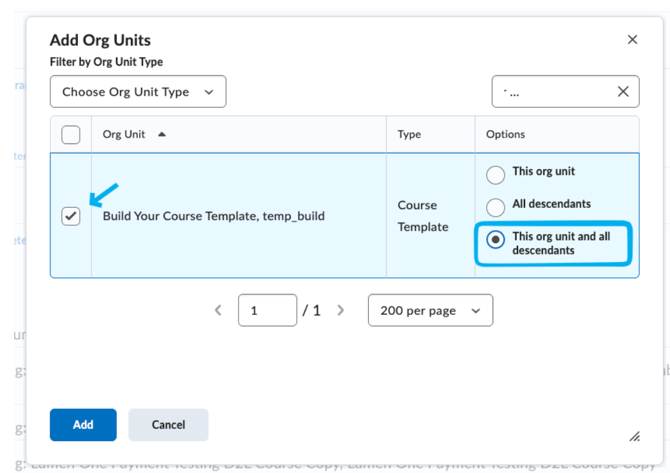

9. Click Add Org Units
   1. Search for the Org Units that will be using the Lumen One Platform LTI 1.3 tool
   2. Click the checkboxes for the desired Orgs Unit(s)
   3. If you will be adding Department or Program level org units and enabling the tool for all offerings within those Org Units, choose the This Org unit and all descendants radio button.
   4. Click Add to add the selected items to your deployment

1. Click Create Deployment or Save if editing an existing deployment

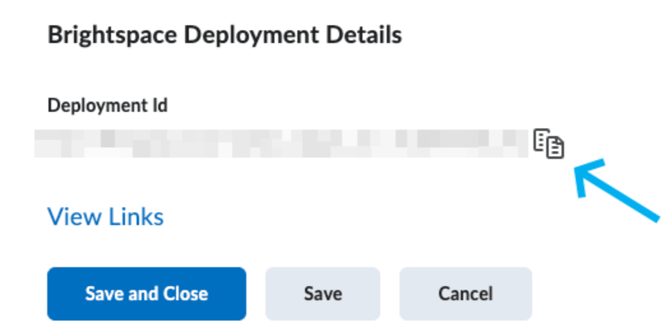

2. Save the Deployment ID to share with Lumen Support

1. Click View Links
2. Verify that the Lumen links appear. If they do not appear, skip to step 14.
   1. Verify that two Lumen Links appear. Verify that they are enabled
      1. Lumen One Platform LTI 1.3
      2. application.deep.linking.menu.label /Lumen One Platform Content Selector
   2. Click application.deep.linking.menu.label type = Deep Linking Quicklink to set the size for the content selection modal.  A width of 1000 and height of 600 is recommended.
   3. Click Save and Close
3. Click New Link (skip this step if you verified that the Lumen links appear in above steps)

Confirm Domain

Access to Lumen Community requires some domains to be safelisted. If the school domain includes “desire2learn” or “brightspace”, safelisting is not required. However, custom domains must be safelisted. Provide the Lumen Support team with the school domain if safelisting is required.

Testing the LTI Integration to Lumen One Platform LTI 1.3

Your LTI 1.3 connection to Lumen One Platform should now be set up. Next, we ask that you perform a short guided test to check that the integration was completed successfully, and confirm that Lumen One Platform courses will work correctly within your institution’s LMS.

To perform this test you'll need to add deep links into a test course in your LMS. Create your test course with the following information:

• Course Offering Name:  Admin Config Test Lumen One
• Course Offering Code: Admin Config Test Lumen One

Note: This test course shell cannot be reused by instructors. Please do not delete the Lumen One links within this test course and provide this same shell to an instructor.

To Add Lumen One Platform LTI 1.3 Links into the Test Course

• Navigate to your test course

1. Click Content
2. Click Add a module …,  enter Lumen One Platform Course Materials as the module name
3. Click Existing Activities from the newly added module
4. Select Lumen One Platform LTI 1.3 from the drop down menu
5. From the Add a course picker, select the Introductory Statistics course.

Note: If instead of the selected page you see an error message “Error - Account not configured correctly” - verify that the Test Course is associated to an Org Unit to which the Tool Provider was deployed, or return to the Deployment step and add the test course as an additional deployment location.

1. From the Preview page, ensure that the Select All box is ticked and click Add Course.
2. Wait for links to be added to the LMS course

Testing the Links

The test content should now have been added into your course and will appear in the Content area under the Tables of Contents > Lumen Content Module

To test the integration, locate and click these links (example below):

1. In the Lumen One Platform Course Materials module, click Lumen Faculty Engagement Center

Confirm that you see:

1. Return to the module folder and find the Lumen Community link

Confirm that you see:

1. Return to the module folder and find and click the Study Plan: Data Types and Organization link

Confirm that you see:

You’re done!
